Key Features

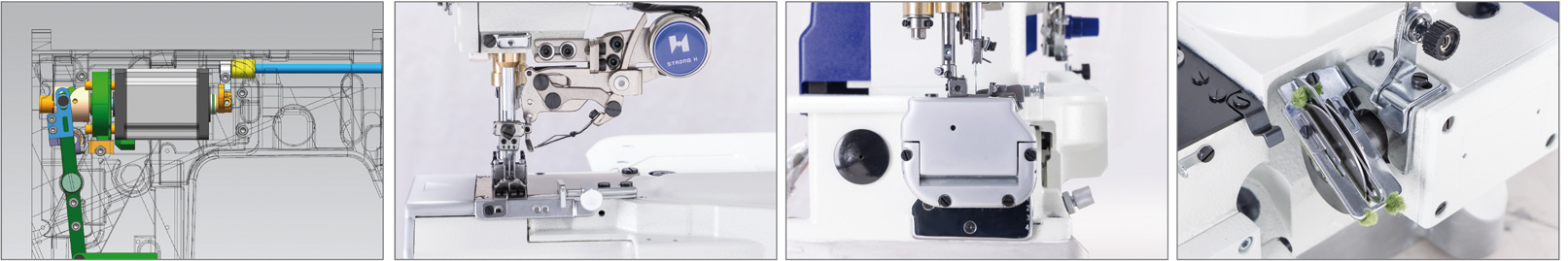

1. Stepper motor for presser foot & thread trimming, low noise, stable cutting
2. Sealed side cover, no oil leakage, clean sewing
3. Slim cylinder design (circumference 260mm), easy for tubular fabrics4. External looper cam for less tangling and higher efficiency
Technical Parameters
| Model | Functions | Needle | Needle NO. |
Thread NO. |
Presser Foot Lifting Height | Stitch Length | Stitch Width |
Differential Ratio |
Max.speed (rpm) |
Meas (cm) |
Weight (Kg) |
| HD-600Z | Plain Seaming | UY128GAS.11# | 3 | 5 | 5.5 | 1.5-4.5 | 5.6/6.4 | 0.5-1.3 | 6000 | 64x40x63 | 52/56 |
